ACCESS CONTROL BIOMETRIC FINGERPRINT, CARD READER STANDALONE WITH MINI CONTROLLER

Call for Price

  • Metal case, embedded design, waterproof, conforms to IP66
  • Read 125kHz EM card or tag
  • One programmable relay operation, pulse mode, toggle mode
  • Indoor and outdoor use
  • Flush mount design
SKU: VIS-3030 Categories: , ,

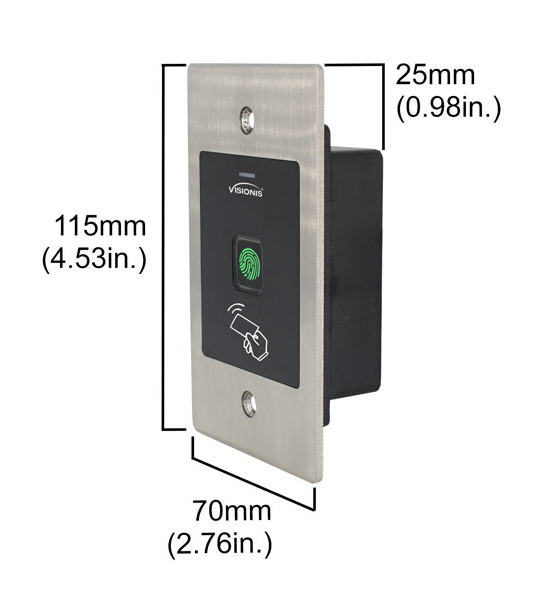

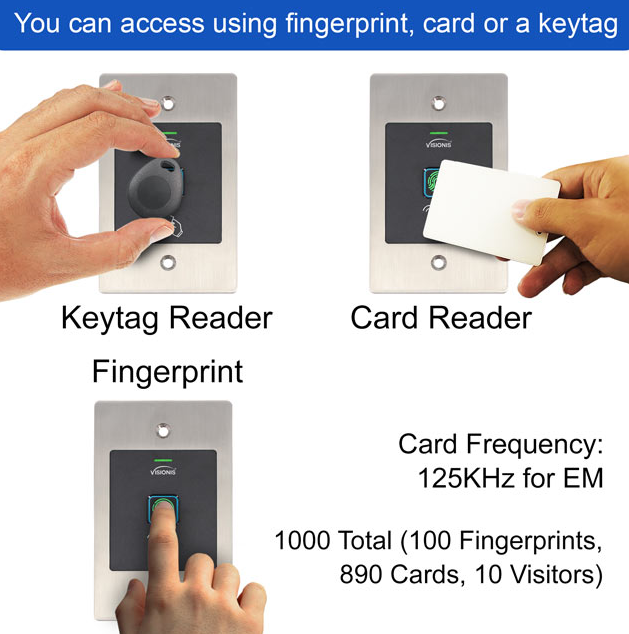

VIS-3030 Fingerprint/Card Reader Description

The VISIONIS VIS-3030 is a metal standalone fingerprint access control, support 125kHZ EM card. It is an easy to operate device, designs in 8 wires for mounting, with user-friendly programming. The device is embedded design with metal plate. It supports up to 1000 users (fingerprint or card users), it is equips with an infrared remote control and master card for easy operation.



Features

  • Metal case, embedded design, waterproof, conforms to IP66
  • Read 125kHz EM card or tag
  • One programmable relay operation, pulse mode, toggle mode
  • Wiegand 26 bits output
  • Wiegand 26/34 bits input automatic identification



VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

VIS-MINI-CNTRL Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)

IMPORTANT:

  • Professional installation is recommended.
  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
